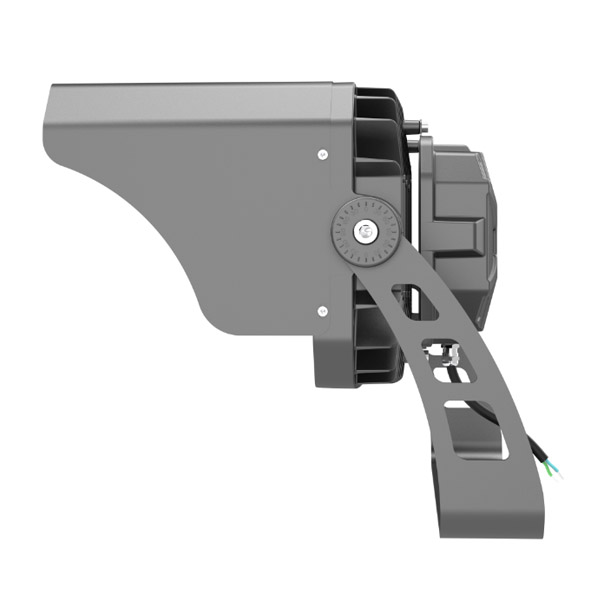

300W Single-mode Module

Adopted a monolithic die-casting appearance, IP66 waterproof rating, each module can be compatible with 300W, 600W, and can also be freely connected for higher power usage. Equipped with an independent power box, separating the power from the LED heat to avoid interference, optimizing the power supply working environment and extending the service life. Uses protective glass lenses. This not only enhances the light transmittance but also prevents yellowing when used outdoors for a long time. Suitable for stadium, square, high-rise building lighting and other lighting applications.

Main parameters
Name Power Segment Luminous Efficiency Material Protection Level
4th Generation Tall Pole Light 300W Single-mode Module 300W 130lm/W ADC12+Strengthened Glass IP65



Technical specifications
Product Model Beam Angle LED Model Aluminum Baseboard Size Parallel and Serial Methods PCB Voltage Weight Packaging Dimensions
AT-SPL4-300 10/25/50/90 3535 443*184*1.5mm 16C6B DC48V 8.8 kilograms 56 by 41.5 by 24.5 centimeters
