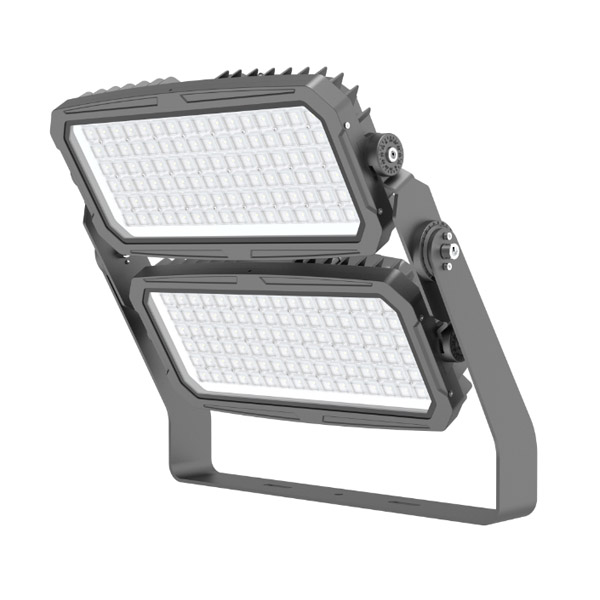

Adopted a monolithic die-casting appearance, IP66 waterproof rating, each module can be compatible with 300W, 600W, and can also be freely connected for higher power usage. Equipped with an independent power box, separating the power from the LED heat to avoid interference, optimizing the power supply working environment and extending the service life. Uses protective glass lenses. This not only enhances the light transmittance but also prevents yellowing when used outdoors for a long time. Suitable for stadium, square, high-rise building lighting and other lighting applications.
Main parameters | ||||
Name | Power Segment | Luminous Efficiency | Material | Protection Level |
Four-generation high-pole lamps, two modules, 600W | 600W | 130lm/W | ADC12+Strengthened Glass | IP65 |
Technical specifications | |||||||
Product Model | Beam Angle | LED Model | Aluminum Baseboard Size | Parallel and Serial Methods | PCB Voltage | Weight | Packaging Dimensions |
AT-SPL4-600-2 | 10/25/50/90 | 3535 | 443*184*1.5mm | 16C6B*2 | DC48V | 17kg | 65*65*25cm |
